Example with high-resolution CMIP6 models (~100 km) using Pangeo catalog

Example with high-resolution CMIP6 models (~100 km) using Pangeo catalog

Time period

We will use data from 1985 to 2014.

Variables

shortname

Long name

Units

levels

prsn

Snowfall Flux

[kg m-2 s-1]

surface

clw

Mass Fraction of Cloud Liquid Water

[kg kg-1]

ml

cli

Mass Fraction of Cloud Ice

[kg kg-1]

ml

tas

Near-Surface Air Temperature

[K]

surface

ta

Air Temperature

[K]

ml

clivi

Ice Water Path

[kg m-2]

lwp

Liquid Water Path

[kg m-2]

pr

Precipitation

[kg m-2 s-1]

surface

Import python packages

# supress warnings
import warnings
warnings.filterwarnings('ignore') # don't output warnings

# import packages
import sys
sys.path.append('/uio/kant/geo-metos-u1/franzihe/Documents/Python/globalsnow/eosc-nordic-climate-demonstrator/work/utils')
from imports import (xr, intake, cftime,  xe, glob, np, cm, pd, fct,ccrs, cy, plt,)

xr.set_options(display_style="html")

# %matplotlib inline


# reload imports
%load_ext autoreload
%autoreload 2

Open CMIP6 online catalog

cat_url = "https://storage.googleapis.com/cmip6/pangeo-cmip6.json"
col = intake.open_esm_datastore(cat_url)
col

pangeo-cmip6 catalog with 7768 dataset(s) from 521429 asset(s):

unique
activity_id 18
institution_id 36
source_id 88
experiment_id 170
member_id 657
table_id 37
variable_id 709
grid_label 10
zstore 521429
dcpp_init_year 60
version 730

Search correspnding data

list_models = [
    'NorESM2-MM',
    'TaiESM1',
    'EC-Earth3-AerChem',
    'GFDL-ESM4',
    'SAM0-UNICON',
    'CAMS-CSM1-0',
    'CMCC-CM2-HR4',
    'MPI-ESM1-2-HR',
    'BCC-CSM2-MR',
    'E3SM-1-1',
    'CMCC-CM2-SR5',
    'CMCC-ESM2',
    'FGOALS-f3-L',
    'E3SM-1-1-ECA',
    'CIESM',
    'GFDL-CM4',
    'MRI-ESM2-0']

variable_id=[
            #  'prsn',
            #  'clivi',
            'lwp',
            # 'tas',
            # 'pr',
            # 'clw'

             ]
cat = col.search(source_id=list_models, table_id = ['Amon', 'AERmon'], experiment_id=['historical'], variable_id=variable_id[0], member_id=['r1i1p1f1'])
cat.df
activity_id institution_id source_id experiment_id member_id table_id variable_id grid_label zstore dcpp_init_year version
0 CMIP NOAA-GFDL GFDL-ESM4 historical r1i1p1f1 AERmon lwp gr1 gs://cmip6/CMIP6/CMIP/NOAA-GFDL/GFDL-ESM4/hist... NaN 20190726
1 CMIP NCC NorESM2-MM historical r1i1p1f1 AERmon lwp gn gs://cmip6/CMIP6/CMIP/NCC/NorESM2-MM/historica... NaN 20191108
2 CMIP EC-Earth-Consortium EC-Earth3-AerChem historical r1i1p1f1 AERmon lwp gr gs://cmip6/CMIP6/CMIP/EC-Earth-Consortium/EC-E... NaN 20200624
3 CMIP AS-RCEC TaiESM1 historical r1i1p1f1 AERmon lwp gn gs://cmip6/CMIP6/CMIP/AS-RCEC/TaiESM1/historic... NaN 20200630
cat.df['source_id'].unique()

array(['GFDL-ESM4', 'NorESM2-MM', 'EC-Earth3-AerChem', 'TaiESM1'],
      dtype=object)

Create dictionary from the list of datasets we found

  • This step may take several minutes so be patient!

# pass rename_cmip6 to consistently label coordinates
dset_dict = cat.to_dataset_dict(zarr_kwargs={'use_cftime':True,}, )#preprocess=rename_cmip6)#'use_cftime':True})'decode_times':False

--> The keys in the returned dictionary of datasets are constructed as follows:
	'activity_id.institution_id.source_id.experiment_id.table_id.grid_label'
100.00% [4/4 00:01<00:00]
list(dset_dict.keys())

['CMIP.NCC.NorESM2-MM.historical.AERmon.gn',
 'CMIP.EC-Earth-Consortium.EC-Earth3-AerChem.historical.AERmon.gr',
 'CMIP.NOAA-GFDL.GFDL-ESM4.historical.AERmon.gr1',
 'CMIP.AS-RCEC.TaiESM1.historical.AERmon.gn']

# show coordinates
for k, ds in dset_dict.items():
    print(k)
    print(list(ds.dims))

CMIP.NCC.NorESM2-MM.historical.AERmon.gn
['lat', 'bnds', 'lon', 'member_id', 'time']
CMIP.EC-Earth-Consortium.EC-Earth3-AerChem.historical.AERmon.gr
['lat', 'bnds', 'lon', 'member_id', 'time']
CMIP.NOAA-GFDL.GFDL-ESM4.historical.AERmon.gr1
['bnds', 'lat', 'lon', 'member_id', 'time']
CMIP.AS-RCEC.TaiESM1.historical.AERmon.gn
['lat', 'bnds', 'lon', 'member_id', 'time']

Double check the time axis. Are they having the same calendar?

# metadata of the historical run:
_d2 = pd.Series(["calendar",
                 "branch_time_in_parent", #"parent_activity_id", "parent_experiment_id",	"parent_mip_era",
                 "parent_source_id",#"parent_sub_experiment_id",
                 "parent_time_units",# "parent_variant_label"
                  ])
for i in dset_dict.keys():
    _data = []
    _names =[]
    _data.append(dset_dict[i].time.to_index().calendar)
    for k, v in dset_dict[i].attrs.items():

        if 'parent_time_units' in k or 'branch_time_in_parent' in k or 'parent_source_id' in k:
            _data.append(v)
            _names.append(k)
    _d2 = pd.concat([_d2,   pd.Series(_data)], axis=1)
    _d2.rename(columns={1:i.split('.')[2]}, inplace=True)
    _d2.rename(columns={0:i.split('.')[2]}, inplace=True)

_d2.dropna(how='all', axis=1, inplace=True)
_d2
NorESM2-MM NorESM2-MM EC-Earth3-AerChem GFDL-ESM4 TaiESM1
0 calendar noleap proleptic_gregorian noleap noleap
1 branch_time_in_parent 438000.0 0.0 36500.0 171550.0
2 parent_source_id NorESM2-MM EC-Earth3-AerChem GFDL-ESM4 TaiESM1
3 parent_time_units days since 0001-01-01 days since 1850-01-01 days since 0001-1-1 days since 1850-01-01

Use data as xarray to make a simple plot

if variable_id[0] == 'lwp':
    ds = dset_dict['CMIP.NCC.NorESM2-MM.historical.AERmon.gn']
else:
    ds = dset_dict['CMIP.NCC.NorESM2-MM.historical.Amon.gn']
ds

<xarray.Dataset>
Dimensions:    (lat: 192, bnds: 2, lon: 288, member_id: 1, time: 1980)
Coordinates:
  * lat        (lat) float64 -90.0 -89.06 -88.12 -87.17 ... 88.12 89.06 90.0
    lat_bnds   (lat, bnds) float64 dask.array<chunksize=(192, 2), meta=np.ndarray>
  * lon        (lon) float64 0.0 1.25 2.5 3.75 5.0 ... 355.0 356.2 357.5 358.8
    lon_bnds   (lon, bnds) float64 dask.array<chunksize=(288, 2), meta=np.ndarray>
  * time       (time) object 1850-01-16 12:00:00 ... 2014-12-16 12:00:00
    time_bnds  (time, bnds) object dask.array<chunksize=(1980, 2), meta=np.ndarray>
  * member_id  (member_id) <U8 'r1i1p1f1'
Dimensions without coordinates: bnds
Data variables:
    lwp        (member_id, time, lat, lon) float32 dask.array<chunksize=(1, 290, 192, 288), meta=np.ndarray>
Attributes: (12/54)
    Conventions:               CF-1.7 CMIP-6.2
    activity_id:               CMIP
    branch_method:             Hybrid-restart from year 1200-01-01 of piControl
    branch_time:               0.0
    branch_time_in_child:      0.0
    branch_time_in_parent:     438000.0
    ...                        ...
    tracking_id:               hdl:21.14100/f9b5958a-4435-41e0-8075-d71b586fc78b
    variable_id:               lwp
    variant_label:             r1i1p1f1
    version_id:                v20191108
    intake_esm_varname:        ['lwp']
    intake_esm_dataset_key:    CMIP.NCC.NorESM2-MM.historical.AERmon.gn
ds[variable_id[0]].attrs

{'cell_measures': 'area: areacella',
 'cell_methods': 'area: time: mean',
 'comment': 'The total mass of liquid water in cloud per unit area.',
 'history': "2019-11-25T21:59:50Z altered by CMOR: Converted units from 'kg/m2' to 'kg m-2'. 2019-11-25T21:59:51Z altered by CMOR: Converted type from 'd' to 'f'.",
 'long_name': 'Liquid Water Path',
 'original_name': 'TGCLDLWP',
 'original_units': 'kg/m2',
 'standard_name': 'atmosphere_mass_content_of_cloud_liquid_water',
 'units': 'kg m-2'}

_month = ds[variable_id[0]].groupby('time.month').mean('time', keep_attrs = True)
_jan  = _month.sel(month = 1)

fig, ax = plt.subplots(1,1,
                         figsize=[10,10],
                         subplot_kw={'projection':ccrs.Orthographic(30, 90)})
fig.suptitle('CMIP6 - high resolution (1985 - 2014)', fontsize=16, fontweight="bold")

# Plot cosmetics
ax.coastlines()
gl = ax.gridlines()
ax.add_feature(cy.feature.BORDERS);
gl.top_labels = False

im = _month.sel(month = 1).plot(ax=ax, transform=ccrs.PlateCarree(), add_colorbar = True,extend = 'max')



plt.tight_layout()
fig.subplots_adjust(top=1)

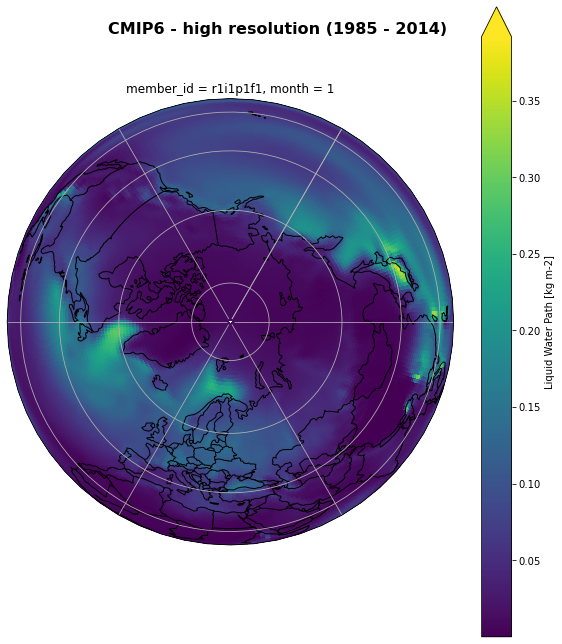

../../_images/CMIP6_hr_1985-2014_19_0.png
fig = plt.figure(1, figsize=[10,10])

ax = plt.subplot(1, 1, 1, projection=ccrs.Orthographic(0, 90))
ax.coastlines()
ds[variable_id[0]].sel(time=cftime.DatetimeNoLeap(1985, 1, 16, 12, 0, 0, 0)).plot(ax=ax, transform=ccrs.PlateCarree(), cmap='coolwarm')

<matplotlib.collections.QuadMesh at 0x7f2428077a60>

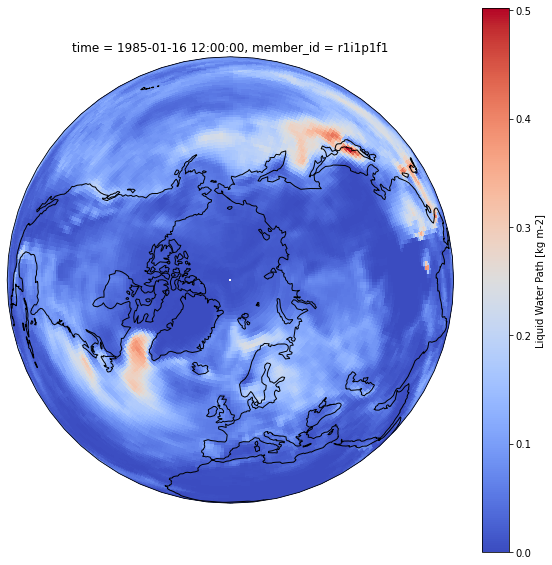

../../_images/CMIP6_hr_1985-2014_20_1.png

Get attributes (unique identifier)

ds.attrs['tracking_id']

'hdl:21.14100/f9b5958a-4435-41e0-8075-d71b586fc78b'

Regrid CMIP6 data to common NorESM2-MM grid

starty = 1985; endy = 2014
year_range = range(starty, endy+1)

# create dictionary for reggridded data
ds_gridded_dict = dict()

# Read in the output grid from NorESM
if variable_id[0] == 'lwp':
    ds_out = dset_dict['CMIP.NCC.NorESM2-MM.historical.AERmon.gn'].isel(member_id = 0)
else:
    ds_out = dset_dict['CMIP.NCC.NorESM2-MM.historical.Amon.gn'].isel(member_id = 0)
ds_out = ds_out.sel(time = ds_out.time.dt.year.isin(year_range)).squeeze()

counter = 0




for keys in dset_dict.keys():
    # select only models which have atmospheric monthly values
    amon = keys.split('.')[-2]
    if amon == 'Amon' or amon == 'AERmon':
        # select model name
        model = keys.split('.')[2]

        # select where data should be saved
        filename = '{}_Amon_1deg_{}01_{}12.nc'.format(variable_id[0], starty, endy)
        savepath = '/scratch/franzihe/output/CMIP6_hist/1deg/{}/'.format(model)
        nc_out = savepath + filename
        files = glob(nc_out)



        # Input data from CMIP6 model to be regridded
        ds_in = dset_dict[keys].isel(member_id = 0)
        ds_in = ds_in.sel(time = ds_in.time.dt.year.isin(year_range)).squeeze()

        # common time grid
        ds_in['time'] = ds_out['time']



        # Regrid data
        ds_in_regrid = fct.regrid_data(ds_in, ds_out)

        # Shift the longitude from 0-->360 to -180-->180 and sort by longitude and time
        ds_in_regrid = ds_in_regrid.assign_coords(lon=(((ds_in_regrid.lon + 180) % 360) - 180)).sortby('lon').sortby('time')
        ds_in_regrid = ds_in_regrid.reset_coords(names=['time_bnds', ], drop=True)



        # create dataset with all models
        ds_gridded_dict[model] = ds_in_regrid
        # ds_in_regrid.close(); ds_in.close(); ds_out.close()

        if nc_out in files:
            print('{} is downloaded'.format(nc_out))
            counter += 1
            print('Have regridded in total: {:} files'.format(str(counter)))
        else:
            # Save to netcdf file
            ds_in_regrid.to_netcdf(nc_out)
            print('file written: {}'.format(nc_out))

Create weight file: bilinear_192x288_192x288.nc
Remove file bilinear_192x288_192x288.nc
using dimensions ('lat', 'lon') from data variable lwp as the horizontal dimensions for this dataset.
lwp True
/scratch/franzihe/output/CMIP6_hist/1deg/NorESM2-MM/lwp_Amon_1deg_198501_201412.nc is downloaded
Have regridded in total: 1 files
Create weight file: bilinear_256x512_192x288.nc
Remove file bilinear_256x512_192x288.nc
using dimensions ('lat', 'lon') from data variable lwp as the horizontal dimensions for this dataset.
lwp True
/scratch/franzihe/output/CMIP6_hist/1deg/EC-Earth3-AerChem/lwp_Amon_1deg_198501_201412.nc is downloaded
Have regridded in total: 2 files
Create weight file: bilinear_180x288_192x288.nc
Remove file bilinear_180x288_192x288.nc
using dimensions ('lat', 'lon') from data variable lwp as the horizontal dimensions for this dataset.
lwp True
/scratch/franzihe/output/CMIP6_hist/1deg/GFDL-ESM4/lwp_Amon_1deg_198501_201412.nc is downloaded
Have regridded in total: 3 files
Create weight file: bilinear_192x288_192x288.nc
Remove file bilinear_192x288_192x288.nc
using dimensions ('lat', 'lon') from data variable lwp as the horizontal dimensions for this dataset.
lwp True
/scratch/franzihe/output/CMIP6_hist/1deg/TaiESM1/lwp_Amon_1deg_198501_201412.nc is downloaded
Have regridded in total: 4 files

ds_gridded_dict.keys()

dict_keys(['NorESM2-MM', 'EC-Earth3-AerChem', 'GFDL-ESM4', 'TaiESM1'])

Connect all models into one Dataset with new coordinate ‘model’

_ds = list(ds_gridded_dict.values())
_coord = list(ds_gridded_dict.keys())
ds_cmip = xr.concat(objs=_ds, dim=_coord, coords="all").rename({'concat_dim':'model'})
ds_cmip = ds_cmip.drop('bnds')

ds_cmip[variable_id[0]].attrs

{'units': 'kg m-2',
 'long_name': 'Liquid Water Path',
 'standard_name': 'atmosphere_mass_content_of_cloud_liquid_water',
 'comment': 'The total mass of liquid water in cloud per unit area.',
 'original_name': 'TGCLDLWP',
 'cell_methods': 'area: time: mean',
 'cell_measures': 'area: areacella'}

if variable_id[0] == 'prsn':
    ds_cmip[variable_id[0]] = ds_cmip[variable_id[0]]*86400
    ds_cmip[variable_id[0]].attrs = {'units': 'mm day-1', 'long_name': 'Snowfall', 'comment': 'At surface; includes precipitation of all forms of water in the solid phase', 'cell_methods': 'area: time: mean', 'cell_measures': 'area: areacella'}
if variable_id[0]  == 'clivi':
    ds_cmip[variable_id[0]] = ds_cmip[variable_id[0]]*1000
    ds_cmip[variable_id[0]].attrs = {'units': 'g m-2', 'long_name': 'Ice Water Path', 'comment': 'mass of ice water in the column divided by the area of the column (not just the area of the cloudy portion of the column). Includes precipitating frozen hydrometeors ONLY if the precipitating hydrometeor affects the calculation of radiative transfer in model.', 'cell_methods': 'area: time: mean', 'cell_measures': 'area: areacella'}
if variable_id[0] == 'lwp':
    ds_cmip[variable_id[0]] = ds_cmip[variable_id[0]]*1000
    ds_cmip[variable_id[0]].attrs = {'units': 'g m-2', 'long_name': 'Liquid Water Path', 'comment': 'The total mass of liquid water in cloud per unit area.', 'cell_methods': 'area: time: mean', 'cell_measures': 'area: areacella'}
if variable_id[0] == 'pr':
    ds_cmip[variable_id[0]] = ds_cmip[variable_id[0]]*86400
    ds_cmip[variable_id[0]].attrs = {'units': 'mm day-1', 'long_name': 'Precipitation', 'comment': 'includes both liquid and solid phases','cell_methods': 'area: time: mean', 'cell_measures': 'area: areacella'}

Create seasonal mean of all regridded models

…and plot seasonal mean of each individual model

ds_cmip[variable_id[0]+'_season_mean'] = ds_cmip[variable_id[0]].groupby('time.season').mean('time', keep_attrs=True)

for model in ds_cmip.model.values:

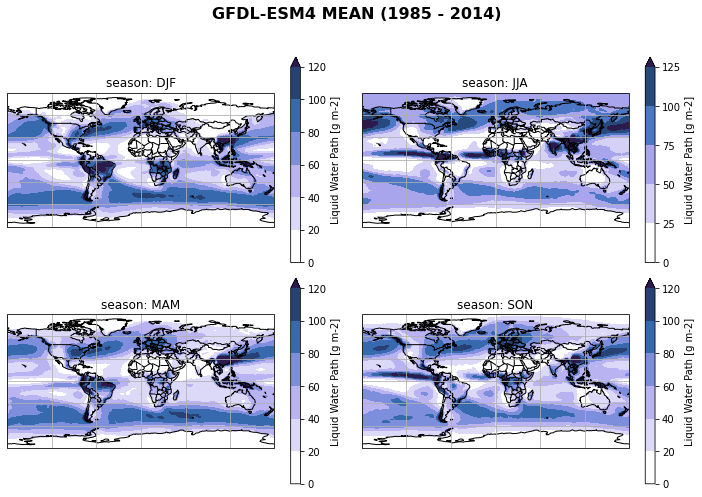

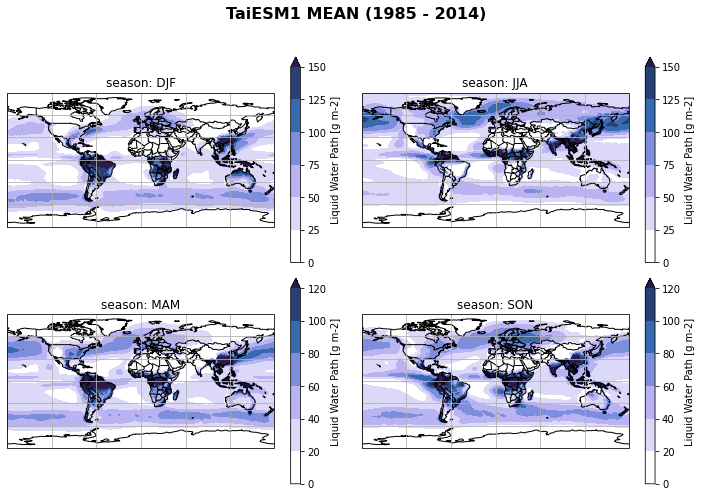

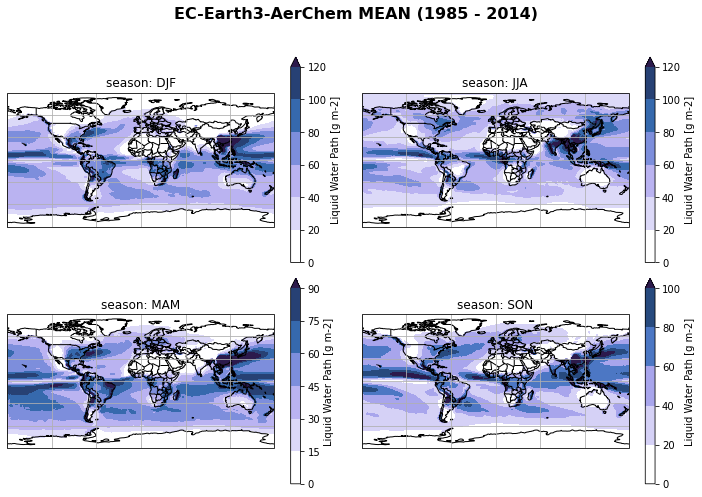

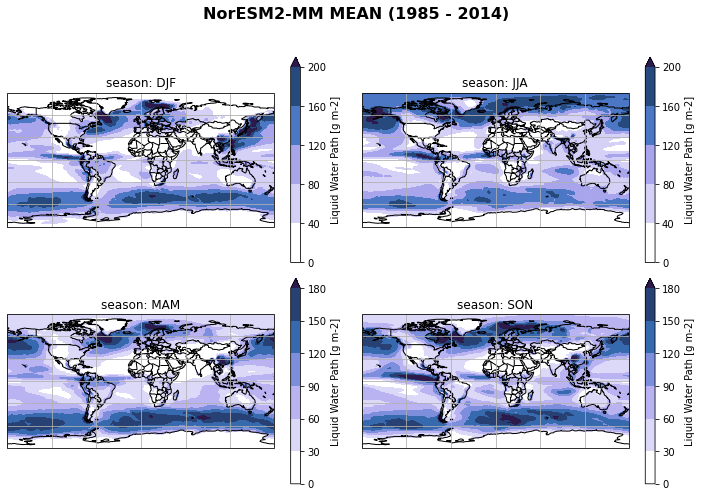

    fct.plt_spatial_seasonal_mean(ds_cmip[variable_id[0]+'_season_mean'].sel(model=model), title='{} MEAN ({} - {})'.format(model,starty, endy))
../../_images/CMIP6_hr_1985-2014_32_0.png ../../_images/CMIP6_hr_1985-2014_32_1.png ../../_images/CMIP6_hr_1985-2014_32_2.png ../../_images/CMIP6_hr_1985-2014_32_3.png

Create model mean/spread of seasonal mean of all regridded models

ds_cmip[variable_id[0]+'_season_model_mean'] = ds_cmip[variable_id[0]+'_season_mean'].mean('model', keep_attrs=True, skipna = True)
ds_cmip[variable_id[0]+'_season_model_std']  = ds_cmip[variable_id[0]+'_season_mean'].std('model', keep_attrs=True, skipna = True)

if variable_id[0] == 'prsn':
    label='Snowfall (mm$\,$day$^{-1}$)'
    vmin = 0
    vmax = 2.5
    levels = 25
    add_colorbar=False
    vmin_std = vmin
    vmax_std= 0.6
if variable_id[0] == 'pr':
    label='Total precipitation (mm$\,$day$^{-1}$)'
    vmin = 0
    vmax=9
    levels = 90
    add_colorbar=False
    vmin_std =vmin
    vmax_std = 2.4
elif variable_id[0] == 'clivi':
    label='Ice Water Path (g$\,$m$^{-2}$)'
    vmin = 0
    vmax=100
    levels = 25
    add_colorbar = False
    vmin_std =vmin
    vmax_std = 20
elif variable_id[0] == 'lwp':
    label='Liquid Water Path (g$\,$m$^{-2}$)'
    vmin = 0
    vmax=100
    levels = 25
    add_colorbar = False
    vmin_std =vmin
    vmax_std = 20
elif variable_id[0] == 'tas':
    label='2-m temperature (K)'
    vmin = 246
    vmax=300
    levels = 40
    add_colorbar = False
    vmin_std = 0
    vmax_std=6

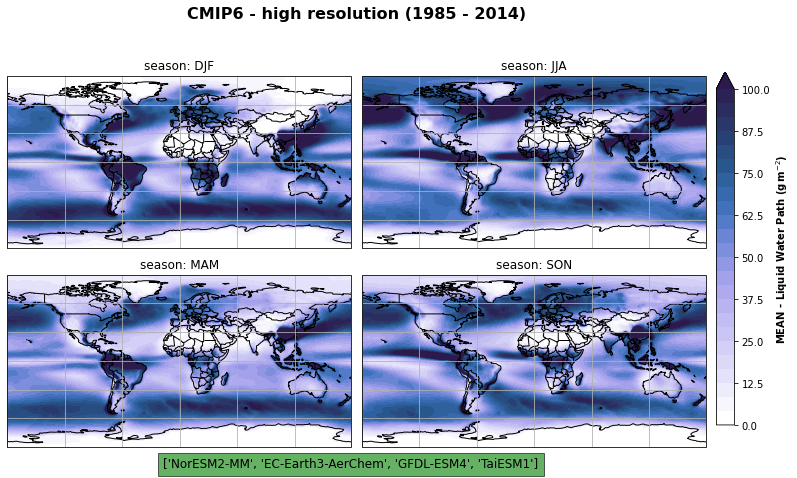

fig, axs, im = fct.plt_spatial_seasonal_mean(ds_cmip[variable_id[0]+'_season_model_mean'], vmin, vmax, levels, add_colorbar=False, title='CMIP6 - high resolution (1985 - 2014)')

fig.subplots_adjust(right=0.8)
cbar_ax = fig.add_axes([1, 0.15, 0.025, 0.7])
cb = fig.colorbar(im, cax=cbar_ax, orientation="vertical", fraction=0.046, pad=0.04)
cb.set_label(label='MEAN - {}'.format(label), weight='bold')

plt.tight_layout()


axs[2].text(1,-0.12, ds_cmip.model.values.tolist()[0:5], size=12, ha="center",
         transform=axs[2].transAxes, bbox ={'facecolor':'green',
                'alpha':0.6,
                'pad':5})
if len(ds_cmip.model.values.tolist()) > 4:
    axs[2].text(1,-0.25, ds_cmip.model.values.tolist()[5:10], size=12, ha="center",
            transform=axs[2].transAxes, bbox ={'facecolor':'green',
                    'alpha':0.6,
                    'pad':5})
if len(ds_cmip.model.values.tolist()) > 10:
    axs[2].text(1,-0.38, ds_cmip.model.values.tolist()[10:-1], size=12, ha="center",
            transform=axs[2].transAxes, bbox ={'facecolor':'green',
                    'alpha':0.6,
                    'pad':5})


# save figure to png
figdir = '/uio/kant/geo-metos-u1/franzihe/Documents/Figures/CMIP6/'
figname = '{}_season_mean_1deg_{}_{}.png'.format(variable_id[0], starty, endy)
plt.savefig(figdir + figname, format = 'png', bbox_inches = 'tight', transparent = False)
../../_images/CMIP6_hr_1985-2014_36_0.png

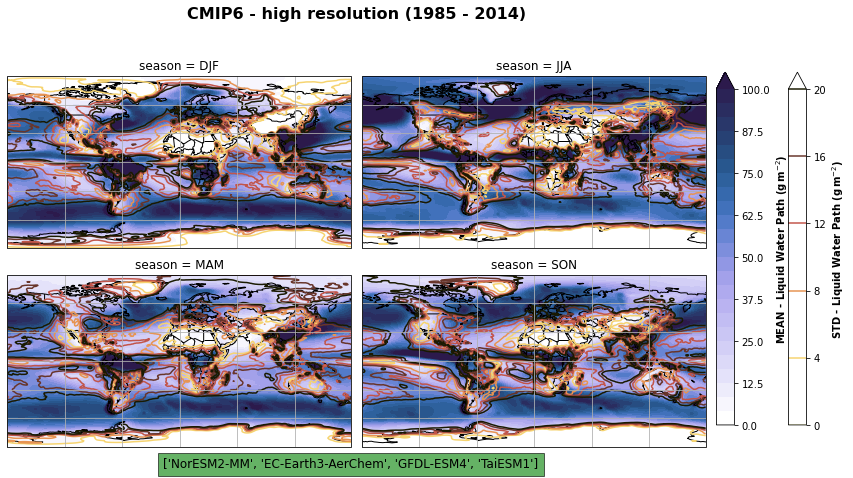

fig, axs, im = fct.plt_spatial_seasonal_mean(ds_cmip[variable_id[0]+'_season_model_mean'], vmin, vmax, levels, add_colorbar=False, title='CMIP6 - high resolution (1985 - 2014)')

fig.subplots_adjust(right=0.8)
cbar_ax = fig.add_axes([1, 0.15, 0.025, 0.7])
cb = fig.colorbar(im, cax=cbar_ax, orientation="vertical", fraction=0.046, pad=0.04)
cb.set_label(label='MEAN - {}'.format(label), weight='bold')



for ax, i in zip(axs, ds_cmip[variable_id[0]+'_season_model_std'].season):
    sm = ds_cmip[variable_id[0]+'_season_model_std'].sel(season=i).plot.contour(ax=ax, transform=ccrs.PlateCarree(),
                                                                      robust=True,
                                                                      vmin = vmin_std, vmax = vmax_std,
                                                                       levels = 6,
                                                                      cmap=cm.lajolla,
                                                                      add_colorbar=False)

cbar_ax = fig.add_axes([1.10, 0.15, 0.025, 0.7])
sb = fig.colorbar(sm, cax=cbar_ax, orientation="vertical", fraction=0.046, pad=0.04)
sb.set_label(label='STD - {}'.format(label), weight='bold')


plt.tight_layout()


axs[2].text(1,-0.12, ds_cmip.model.values.tolist()[0:5], size=12, ha="center",
         transform=axs[2].transAxes, bbox ={'facecolor':'green',
                'alpha':0.6,
                'pad':5})
if len(ds_cmip.model.values.tolist()) > 4:
    axs[2].text(1,-0.25, ds_cmip.model.values.tolist()[5:10], size=12, ha="center",
            transform=axs[2].transAxes, bbox ={'facecolor':'green',
                    'alpha':0.6,
                    'pad':5})
if len(ds_cmip.model.values.tolist()) > 10:
    axs[2].text(1,-0.38, ds_cmip.model.values.tolist()[10:-1], size=12, ha="center",
            transform=axs[2].transAxes, bbox ={'facecolor':'green',
                    'alpha':0.6,
                    'pad':5})
# save figure to png
figdir = '/uio/kant/geo-metos-u1/franzihe/Documents/Figures/CMIP6/'
figname = '{}_season_mean_std_1deg_{}_{}.png'.format(variable_id[0], starty, endy)
plt.savefig(figdir + figname, format = 'png', bbox_inches = 'tight', transparent = False)
../../_images/CMIP6_hr_1985-2014_37_0.png
# savet to netcdf
filename = '{}_1deg_{}01_{}12.nc'.format(variable_id[0], starty, endy)
savepath = '/scratch/franzihe/output/CMIP6_hist/1deg/'
nc_out = savepath + filename
files = glob(nc_out)

counter = 0
# Save to netcdf file
if nc_out in files:
#     print('{} is downloaded'.format(nc_out))
#     counter += 1
#     print('Have saved in total: {:} files'.format(str(counter)))
# else:
    ds_cmip.to_netcdf(nc_out)
    print('file written: .{}'.format(nc_out))

file written: ./scratch/franzihe/output/CMIP6_hist/1deg/lwp_1deg_198501_201412.nc

previous

Notebooks from researchers

next

Cloud feedback Analysis with ERA5 high-resolution (~0.25deg) monthly means
